- Heavy Duty Standard Single Post Curved Pay Station Canopy
- Non-Illuminated Clearance/Alert Bar
- Galvanized J-Anchor Assembly
- Baked Enamel bottom canopy cover
- RFID Reader Canopy Mount
- Single Sided OPEN/CLOSED LED Fixture
- Illuminated Curved Canopy Topper w/ Photo Eye
- Middle beam is supported by 2 CNC cut bars 3/8” x 3 1/2” x 24” and Heavy 4” x 4” x 3/8” cross beams. Top is heavy duty aluminum tubing 2” x 4” x .250” wrapped with baked enamel aluminum. Post is heavy steel 6” x 6” x .250”

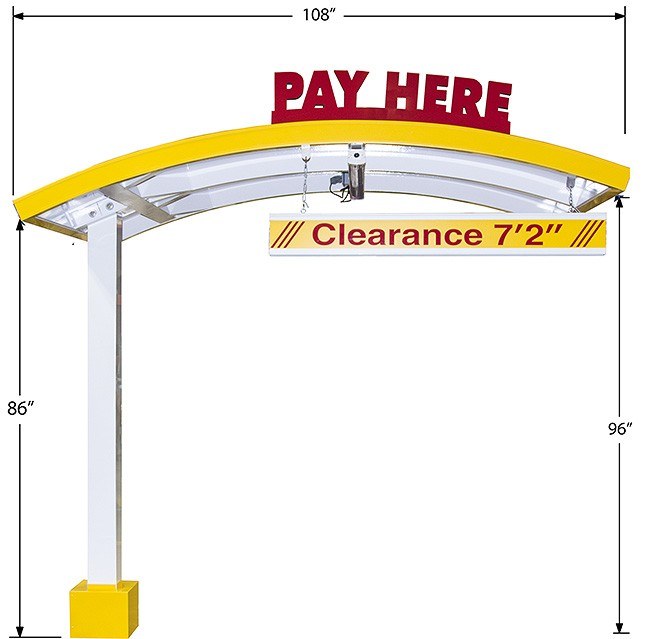

- Up to 108" W x 96" H x 72" D Click on image above
- 100-240VAC / 4 AMP
- Waterproof LED Light
- See schematic under resource tab

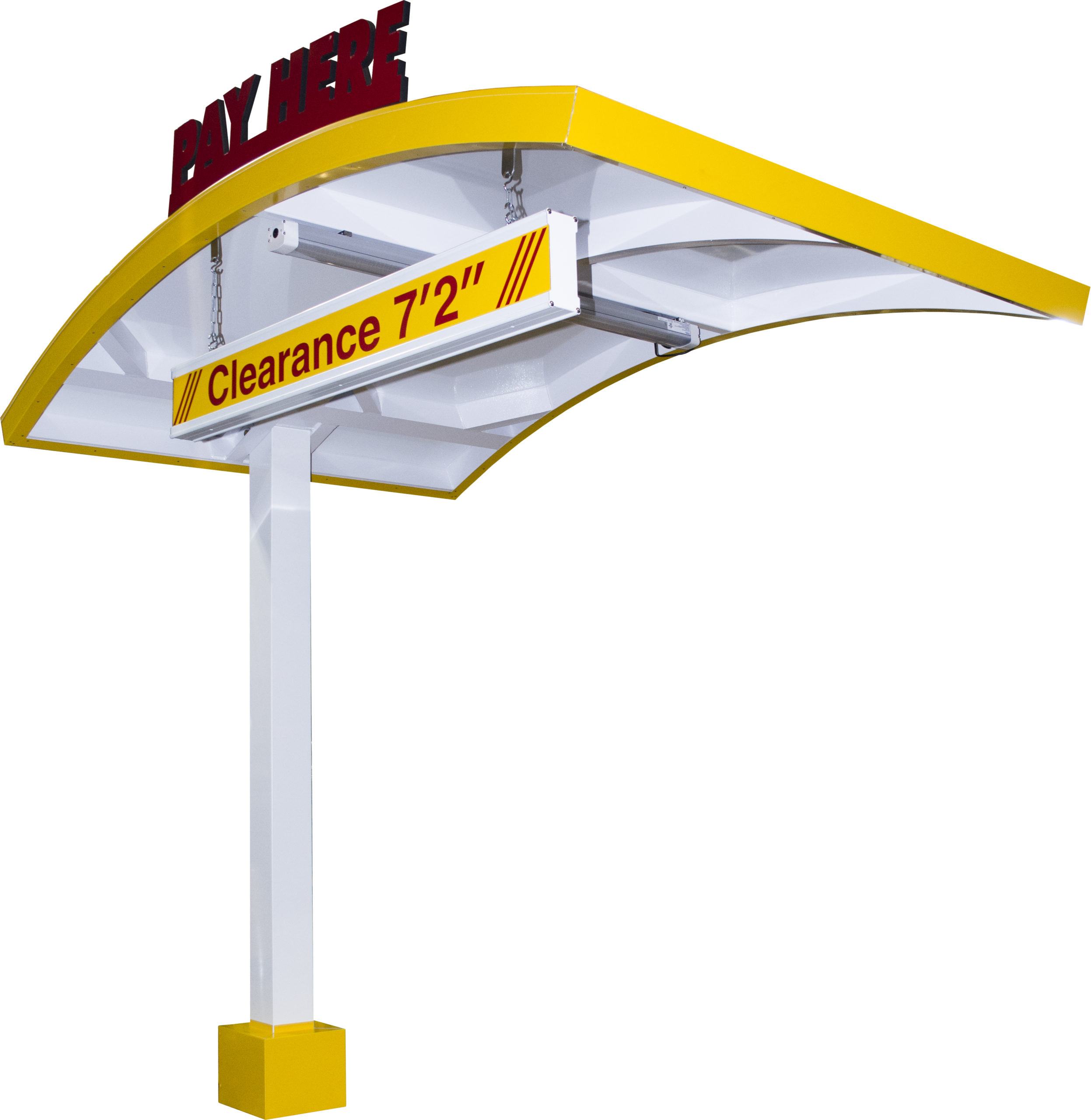

CURVED CANOPY – HEAVY DUTY SINGLE POST
- Sleek & modern design to help improve your wash image.
- Protects your expensive and sensitive electronics.
- The post will be wrapped in baked enamel colored aluminum.
- Includes a 5FT LED Light Fixture
- Heavy Duty Single Post Curved Canopy is rated for 130 MPH winds & 30 PSF roof (Live Load)
HDCPSC Standard Single Post Curved Pay Station Canopy
CB1 Non-Illuminated Clearance/Alert Bar
CJ12X12 Galvanized J-Anchor Assembly
BEABC Baked Enamel bottom canopy cover.
RFKIT RFID Reader Canopy Mount
ELED8 Single Sided OPEN/CLOSED LED Fixture
ILCTC Illuminated Curved Canopy Topper w/ Photo Eye
